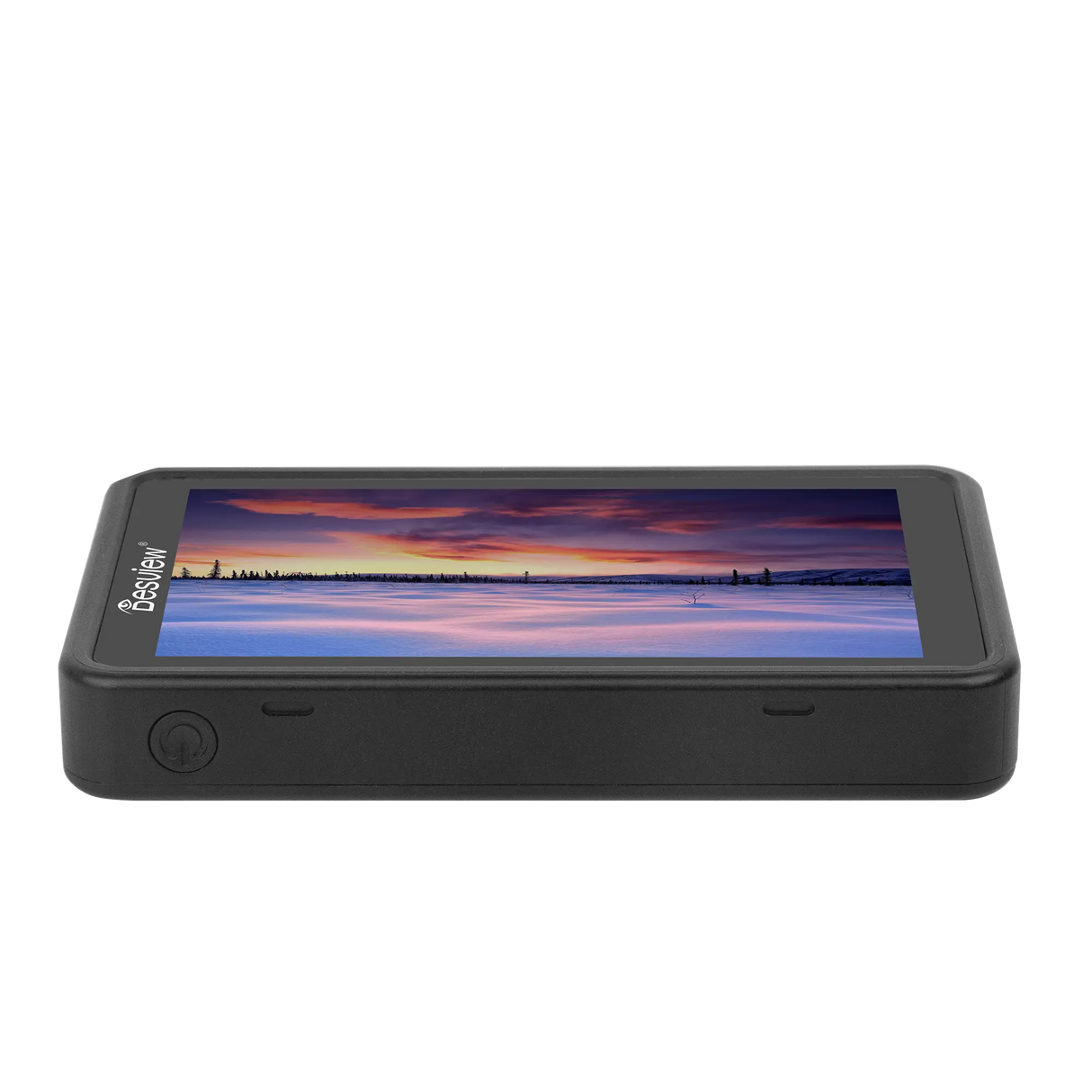

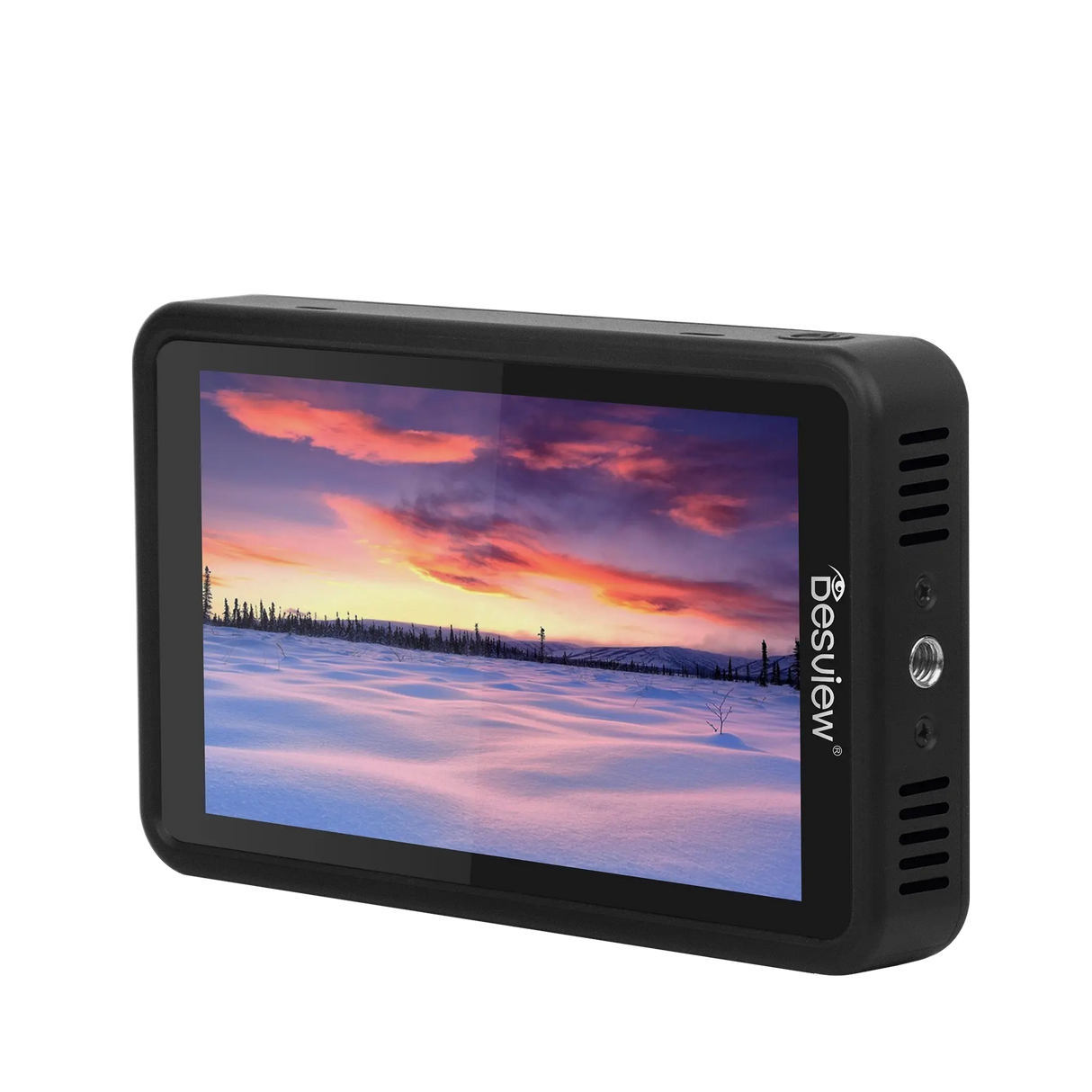

DesView R5II Field monitor with touchscreen display
If you have felt the built -in screen of your camera too often than too small, this time of the small screens is with the DesView 5.5 "Camera monitor R5II Now over.

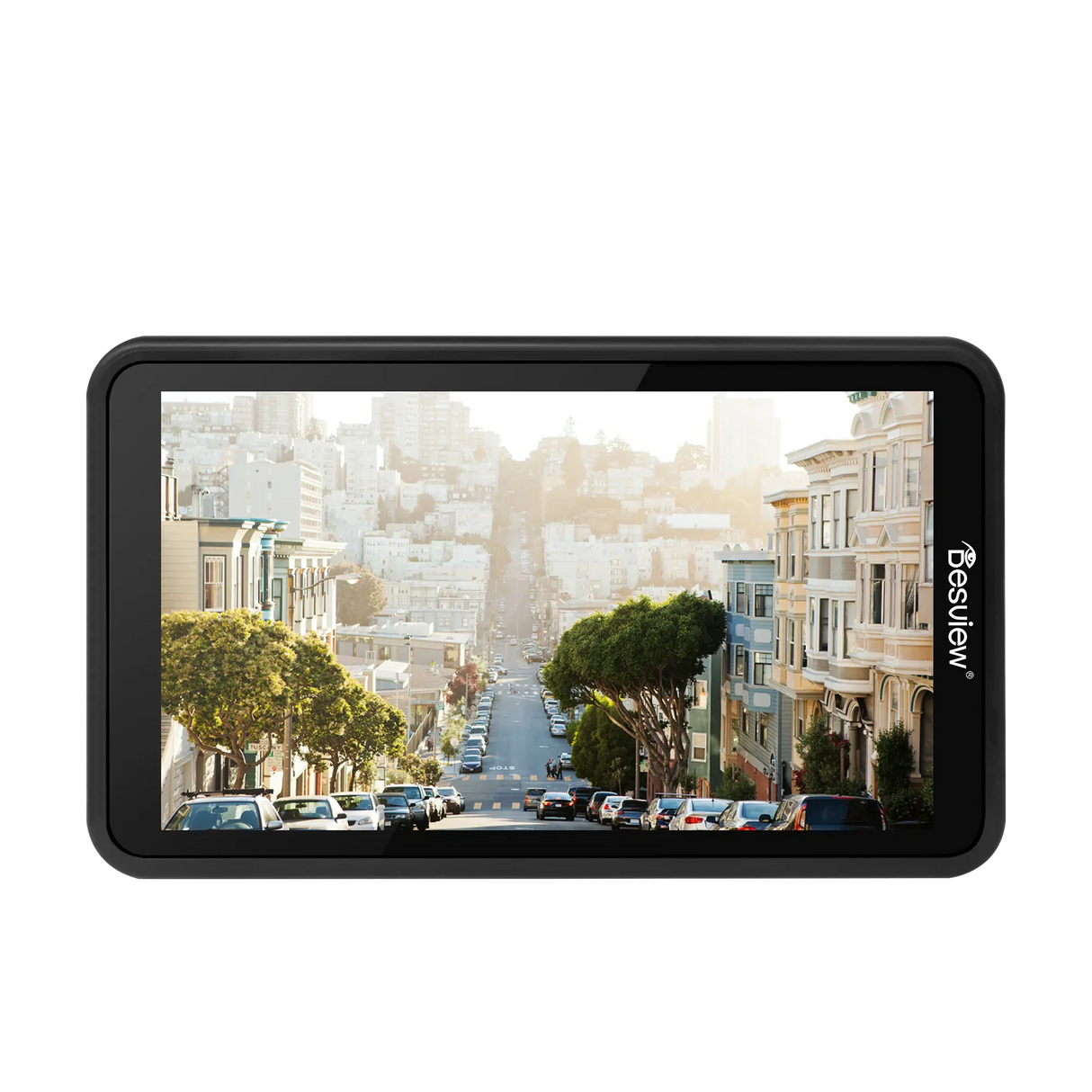

Easy operation via touchscreen and full HD resolution
The Field monitor Has one Screen diagonal of 5.5 inches and the operation of the external camera monitors is easily and conveniently via Touchscreen, so you can easily type through the menu. In addition, the monitor About a Full HD resolution And with the high Brightness of 800 nits In combination with the supplied, removable sun visor, you have no problems even with strong sunlight, all content of the Field monitors To see and use it.

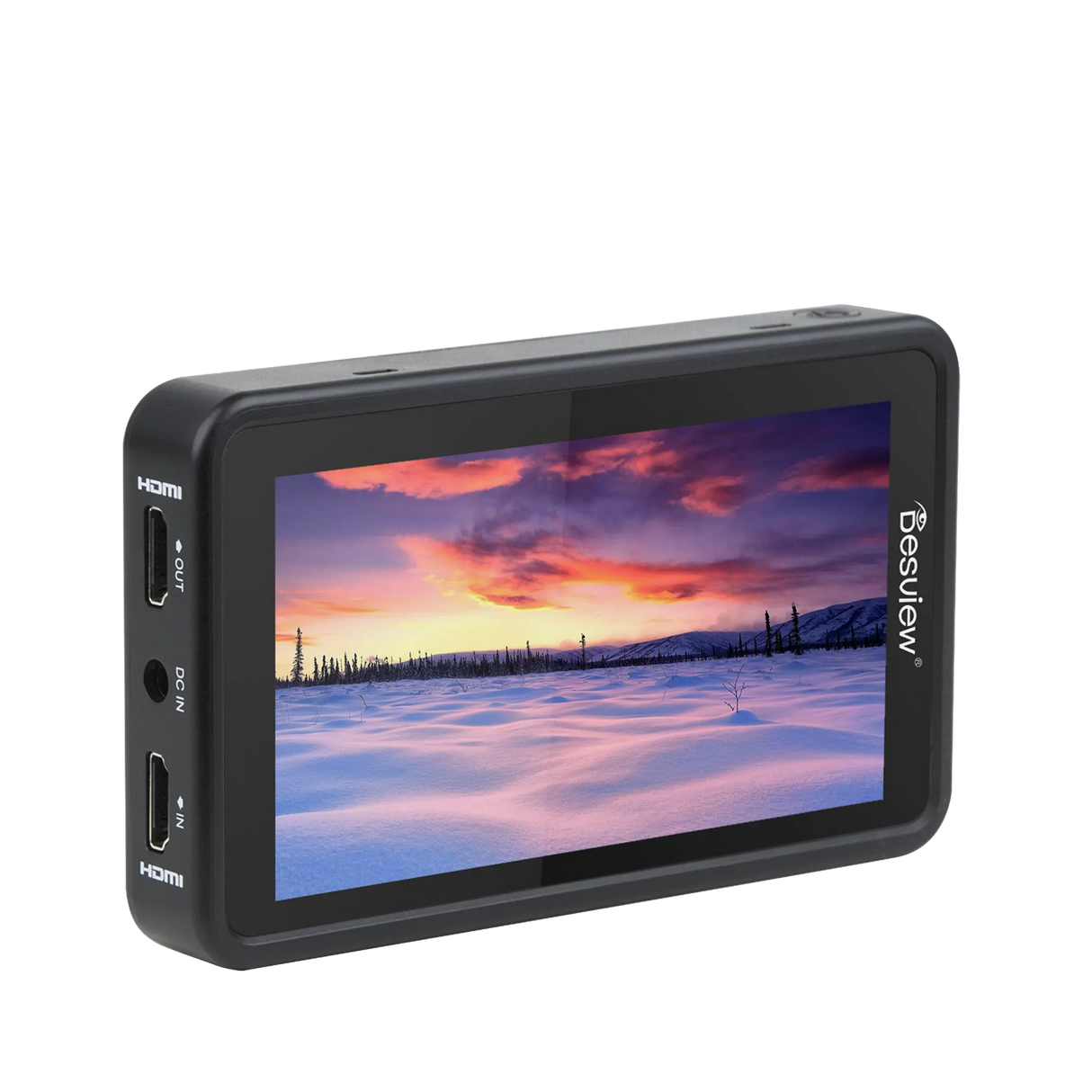

HDMI connections, 1/4-inch connections and cold shoe adapter

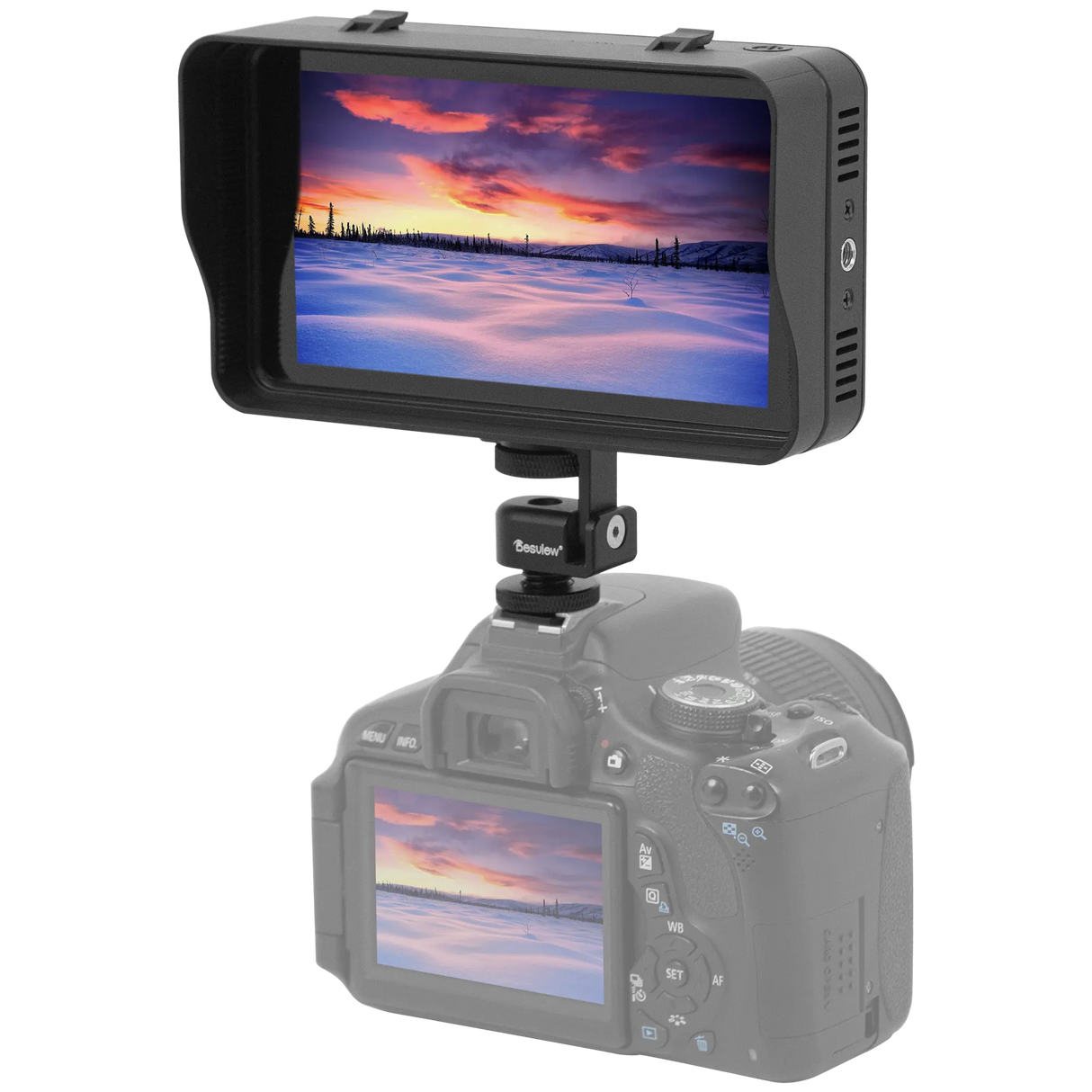

Through one HDMI input and output on the DesView R5II camera monitor Can you Videos in 4K for example from your camera through the Field monitor Play on another device. The integrated 1/4-inch connections on the side and on the underside of the monitor and the included cold shoe adapter also provide quick and safe attachment in a horizontal or vertical position directly on your camera or on a tripod.
Many useful functions for your shoot
The DesView camera monitor R5II Has numerous useful functions that are very helpful for photo and video shoots in the studio or on location.
With the "Zebra" function For example, you can see which areas are overexposed so that you get a better overview of contours and light and dark areas.
The "False Color" function Allows you that overexposed areas can be displayed in dark red, for example, and can be corrected.
The "Center Cross" function Can be set in order to be able to adjust length conditions better.
With the Function "Aspect Ratio" If you see which area will be in the picture later and with video editing software you can later transfer the photo to the format, whereas the Function "Safe Area" shows which area must be in the picture so that the recordings can be transferred later to other formats.
Through the Function "Focus Peaking" If sharpening and blurring are better visible in the picture, colors of the "focus peaking" can be set in four different colors (red, green, blue and gray) and intensities can be set differently.
Also "Waveeform", so the control of the luminance level, and "Grid", i.e. the division into individual image areas, belong to other helpful functions with which the Field monitor R5II is equipped.
The rash and the absorption of audio can use the Function "Audio meter" are displayed and the External camera monitor has a sound reproduction.
You also have the option of quickly and easily using the USB stick supplied Luts To load the monitor, i.e. preset sets in terms of color, brightness, saturation and more.
Note: battery not Included!

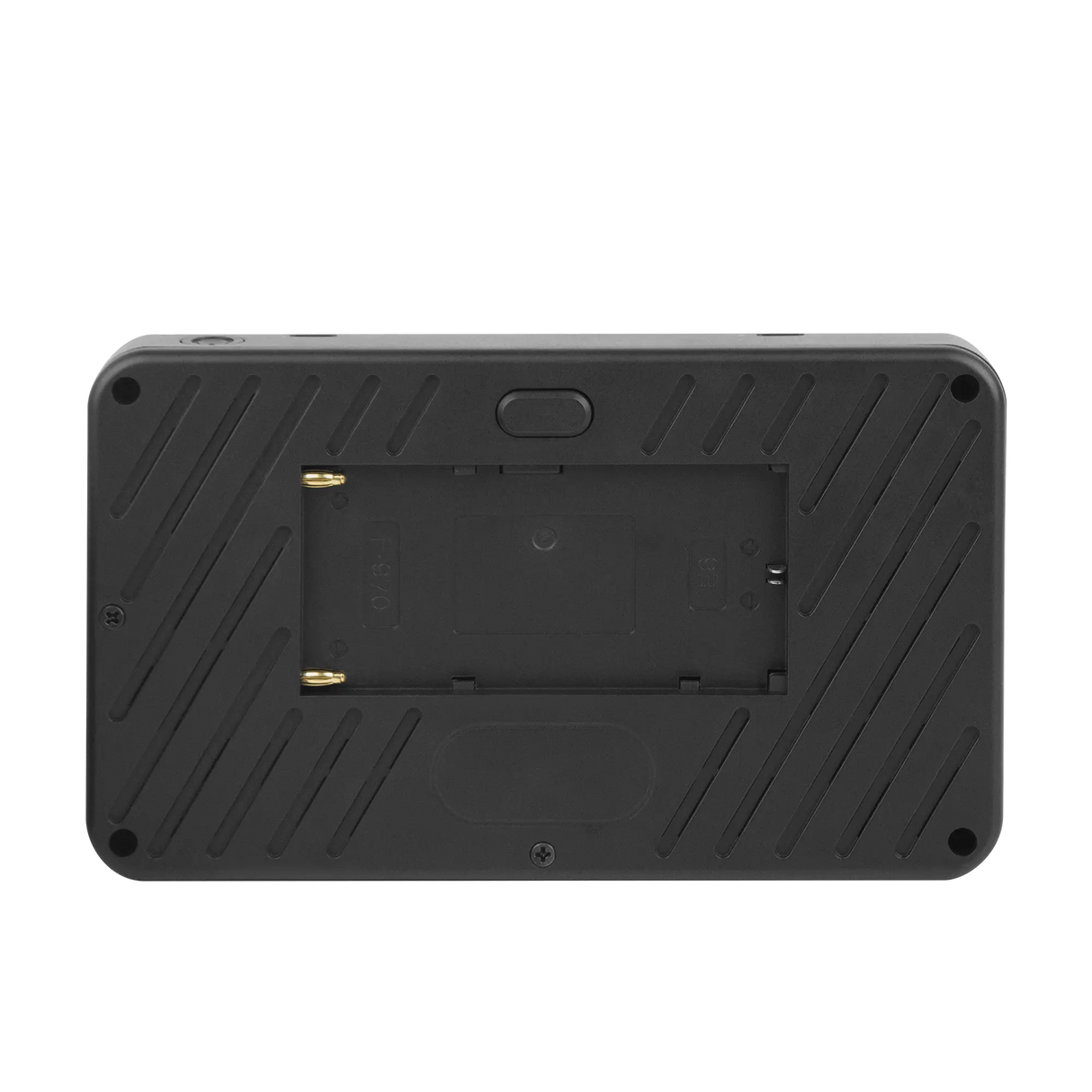

Practical optional battery operation
The Camera monitor R5II is compatible with our batteries from Type NP-F And with our Battery charger of the type NP-F. (Not included in the scope of delivery!)
Technical data
| Screen size: |
5,5" |
| Resolution: |
1,920 x 1,080 |
| Brightness: |
800 nits |
| Contrast: |
1.000:1 |
| Consideration angle: |
178 ° |
| Back lighting: |
LED |
| Power supply: |
DC 7 - 24 V / 9 W |

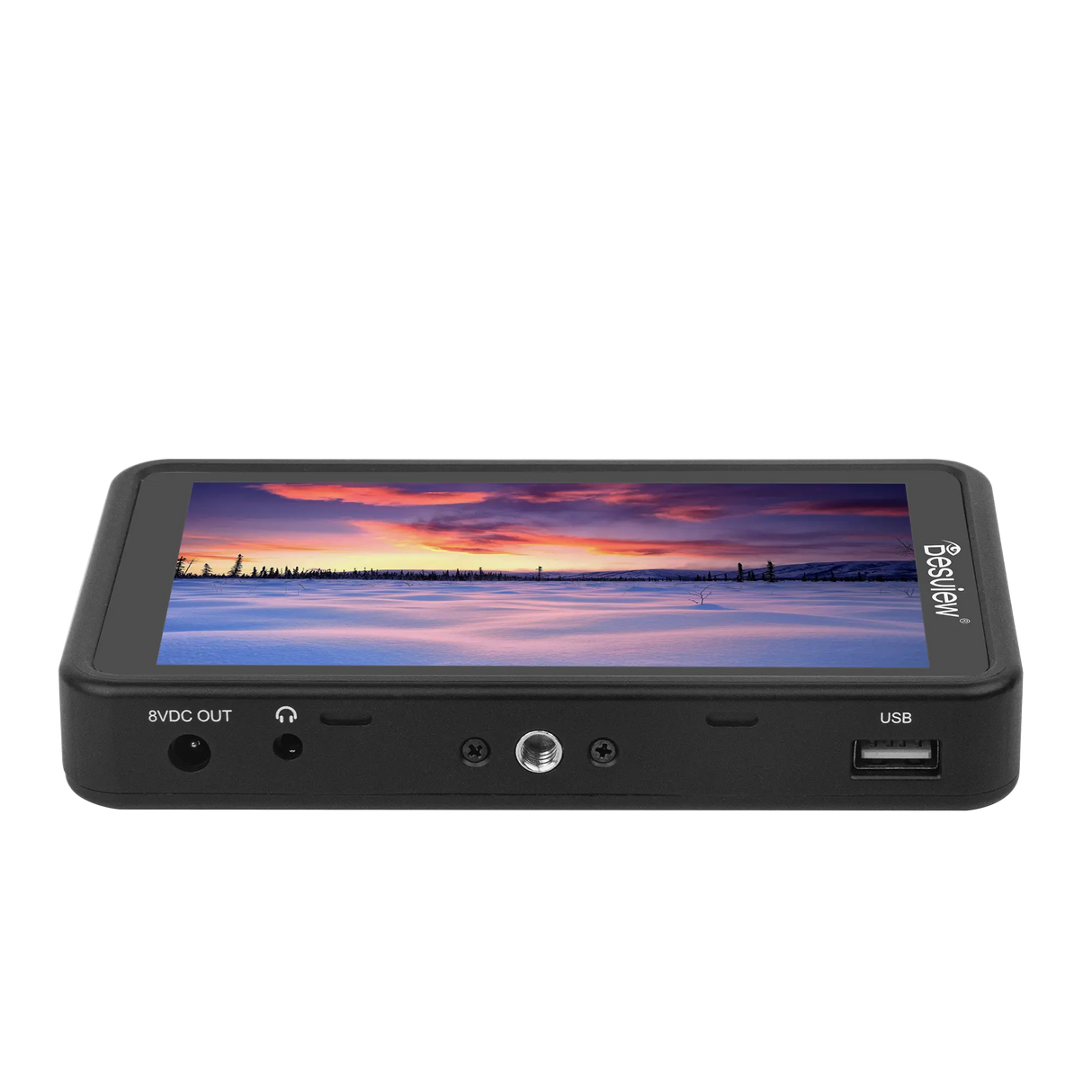

| Connections: |
DC connection (input / output), USB connection, HDMI 1.4 connection (input / output), 3.5 mm jack connection, 2 x 1/4 "connection, Cold shoe connection
|
| Material: |
plastic |
| Mass: |
15.1 x 8.9 x 2.2 cm |
| Weight: |
200 g |

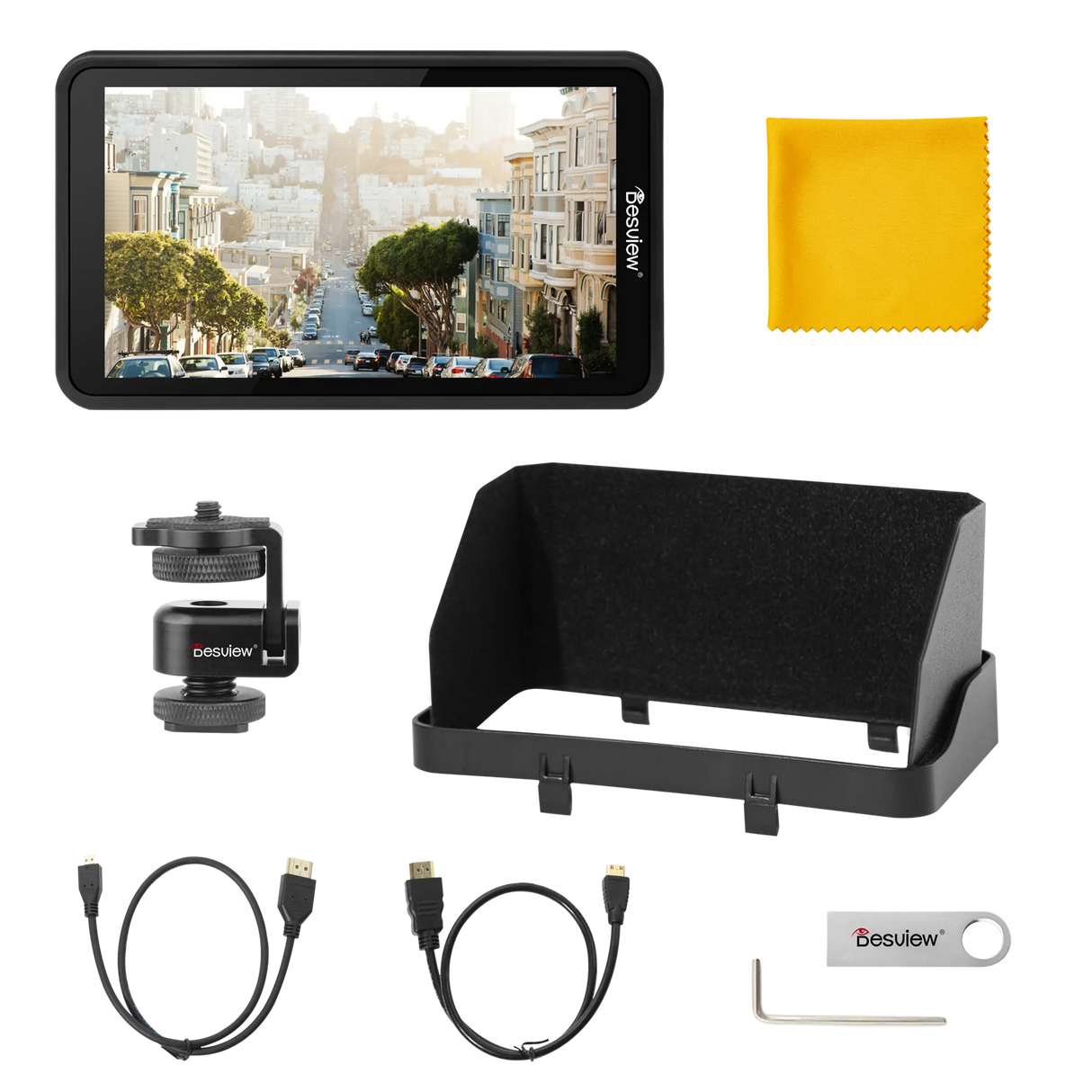

Scope of delivery
- 1x monitor
- 1x cold shoe adapter
- 1x USB stick
- 1x sun visor
- 1x micro HDMI cable
- 1x mini HDMI cable
- 1x cleaning cloth
